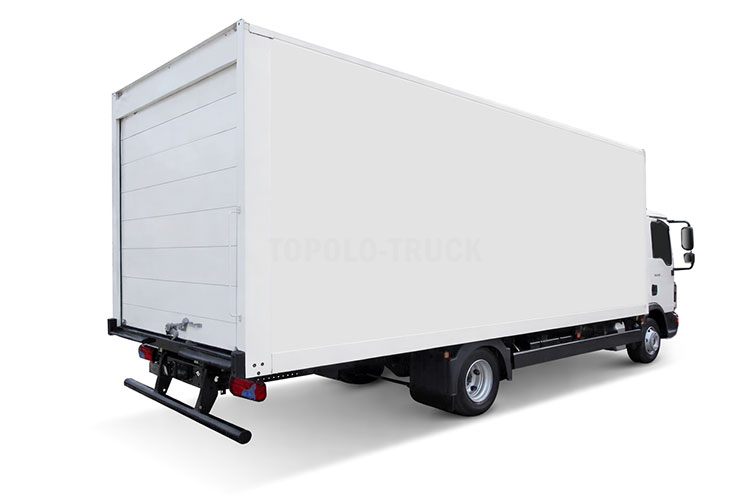

Box Truck Body with Roll Up Door
Home >> Truck Bodies
Roll-up doors (also known as roller shutter doors) consist of multiple horizontal slats and are installed at the rear of the vehicle body. They are widely used in vans, refrigerated trucks, dry cargo trucks, and various trailers. Compared to traditional hinged rear doors, roller shutter doors significantly save rear space and improve loading and unloading efficiency through vertical opening, making them particularly suitable for urban delivery, cold chain logistics, and transportation scenarios involving frequent door opening and closing.
Customized Services
- Cargo body design services.
- Cargo box structural panels.
- Cargo box accessories and parts.
- Pre-assembled cargo body kits.
- Assembled cargo bodies.
DESCRIPTION
TOPOLO-TRUCK specializes in the design and manufacturing of box truck bodies, supplying a wide range of refrigerated and dry freight box truck bodies equipped with roll-up doors. We provide comprehensive design solutions tailored to different transportation scenarios and customer requirements, covering structural design, material selection, and functional configurations. Our solutions ensure excellent thermal insulation, high structural strength, and convenient operation, helping customers improve overall practicality and transportation efficiency.
Box Body Sizes
| Truck Body Length | Inner Length (mm) | Inner Width (mm) | Inner Height (mm) | Typical Chassis | Estimated Chick Capacity* |
|---|---|---|---|---|---|
| 4.0 m | 3800 | 2100 | 2200 | Light truck (4×2) | 30,000 – 40,000 |
| 5.2 m | 5000 | 2150 | 2300 | Light / Medium truck | 45,000 – 60,000 |
| 6.2 m | 6000 | 2200 | 2400 | Medium truck | 65,000 – 85,000 |
| 6.8 m | 6600 | 2300 | 2450 | Medium truck | 85,000 – 100,000 |
| 7.6 m | 7400 | 2350 | 2500 | Medium / Heavy truck | 100,000 – 130,000 |
| 8.6 m | 8400 | 2400 | 2600 | Heavy truck | 130,000 – 160,000 |
| 9.0 m | 8800 | 2450 | 2600 | Heavy truck | 160,000 – 200,000 |
How Roll-up Doors Work？
Working Principle
- Interlinked Slat Structure
Multiple aluminum or composite slats are connected by hinges or interlocking joints, forming a flexible and rollable door curtain.
- Guide Rail System
Vertical guide rails are installed on both sides of the door opening to ensure stable and smooth movement during opening and closing.
- Rolling Mechanism
When the door is opened, the slats move upward along the guide rails and roll onto a shaft or into a housing at the top of the vehicle body. When closing, the door unrolls downward in reverse.
Operation Methods
- Manual roll-up doors: Operated using a handle, often assisted by a spring-balancing system
- Electric roll-up doors: Equipped with a motor and control system (switch or remote), suitable for large doors or high-frequency use
Materials for Roll-up Doors
Aluminum Alloy Sheets
Widely used on dry cargo trucks.
- Lightweight, helping to reduce overall vehicle weight.
- Excellent corrosion resistance, suitable for humid and refrigerated environments.
- Surface treatments include anodizing or powder coating.

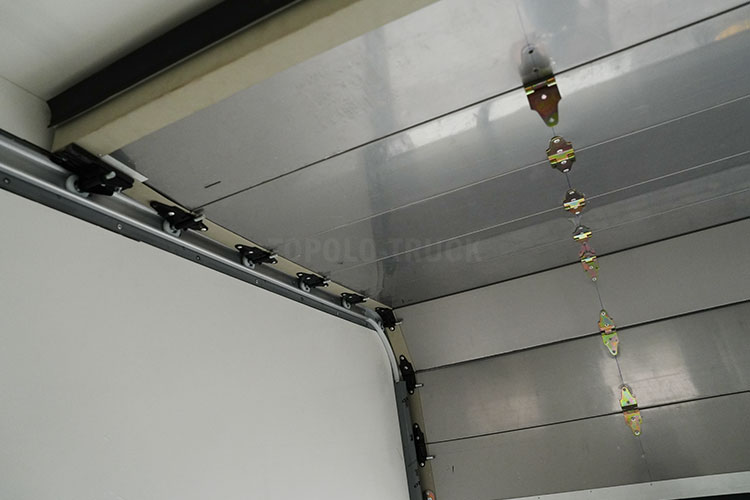

Aluminum Alloy + Polyurethane Composite Materials
The aluminum alloy and polyurethane composite structure significantly improves the thermal insulation, heat insulation, and sealing performance of the door while ensuring structural strength by injecting or sandwiching polyurethane foam core material between aluminum alloy sheets. This structure is widely used in refrigerated trucks, cold chain logistics vehicles, and transport vehicles with high temperature control requirements.
- Balancing Strength and Lightweight.
- Excellent Thermal Insulation Performance.
- Good Sealing Performance.
- Outstanding Corrosion Resistance.
